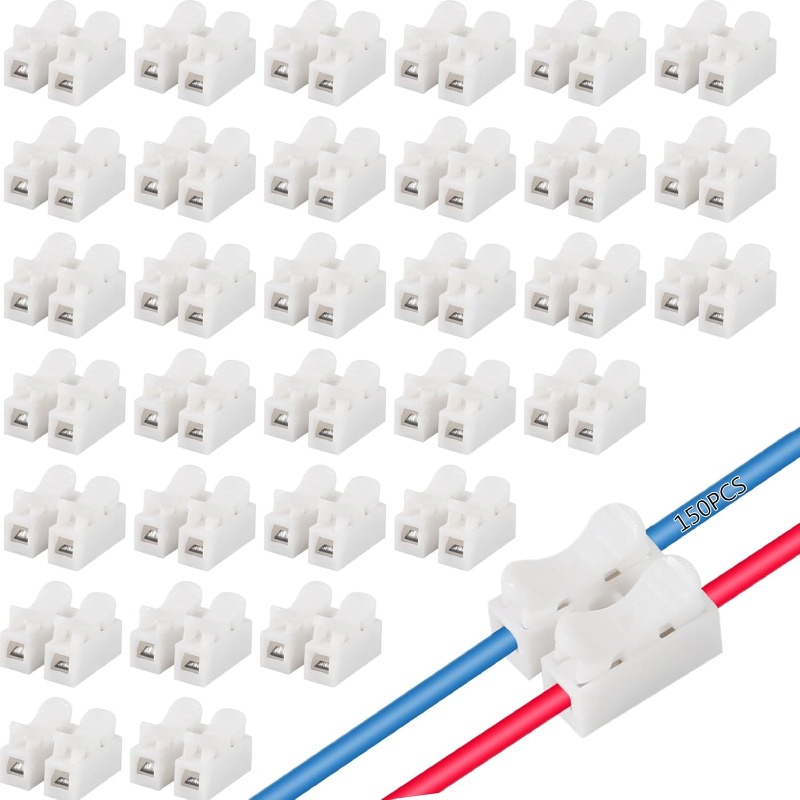

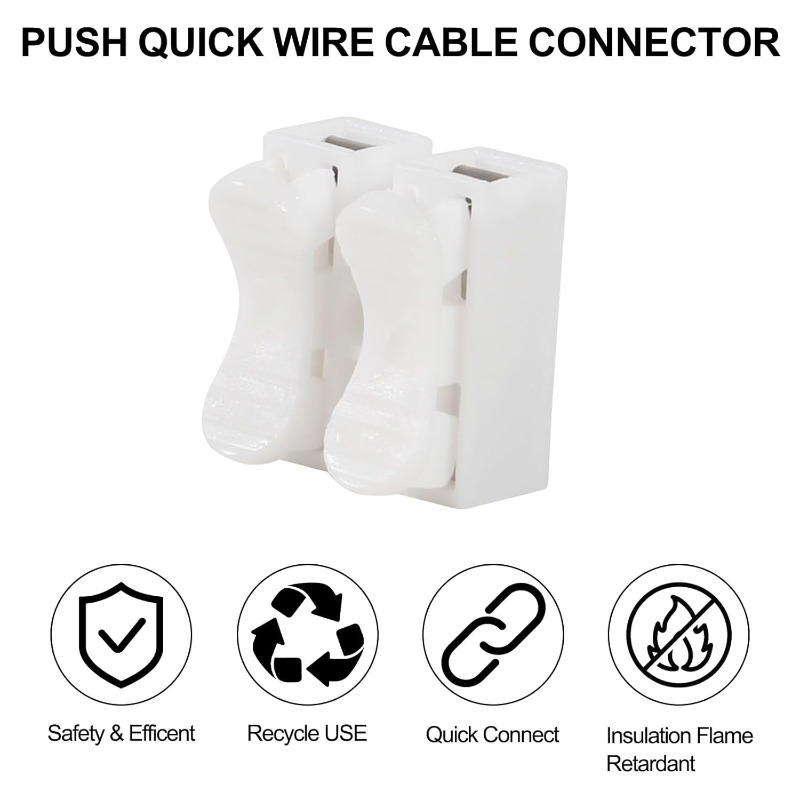

150PCS Push Quick Wire Cable Connector, 10A 220V 2 Pin Spring Wire Connectors, CH-2 Electrical Cable Connectors Block for Lighting Electrical and Automotive Wiring Electricity
Spring Wire Quick Connectors – Safe, High-Conductive PVC Insulated Terminals
Safety First: High-Grade PVC Insulation
The connector shell is made from premium PVC insulation and fireproofing materials, delivering outstanding high-voltage resistance, high melting point, and exceptional durability under extreme temperatures ranging from -40°C to 150°C. Built for safe and stable electrical performance.
Superior Electrical Conduction
Featuring high-conductive steel springs, the internal pressing sheet offers excellent elasticity, toughness, energy efficiency, and corrosion resistance. These quick wire connectors ensure reliable conductivity and exceptional long-term electrical safety.
Rated for Professional Use
Rated Voltage: 250V
Rated Current: 10A
Compatible with 20–12 AWG wire lines.
Perfect for both commercial and household applications.

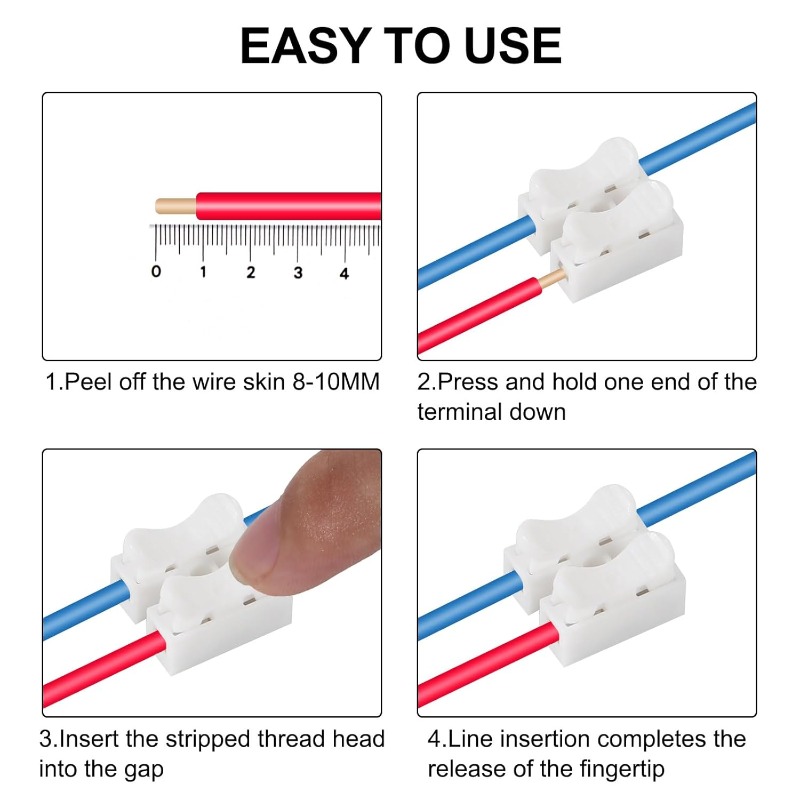

Easy, Screw-Free Installation

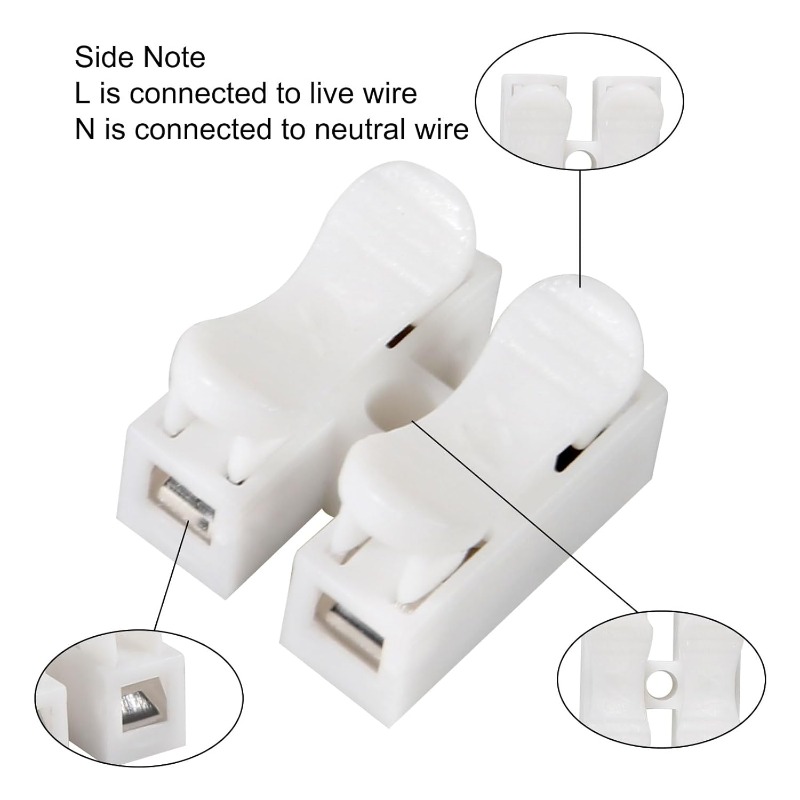

The L terminal is designed for the Live wire, while the N terminal is for the Neutral wire. The spring-wire connector structure allows fast wiring without screws, eliminating the need for traditional electrical tape. Simple, secure, and time-saving for both professionals and DIY users.
Wide Application Range
Ideal for lighting, motor wiring, power systems, electrical controls, household appliances, machinery, automotive wiring, and wire joints. A versatile and essential wiring solution for safe and reliable electrical connections.
📘 Specifications
| Shell Material | PVC insulation + fireproofing |
| Internal Material | High-conductive steel spring |
| Rated Voltage | 250V |
| Rated Current | 10A |
| Wire Compatibility | 20–12 AWG |
| Temperature Range | -40°C to 150°C |
| Connection Type | Push-in spring wire connector (no screws required) |
| Applications | Lighting, motors, appliances, machinery, automotive, electrical systems |
❓ FAQ
1. Can these connectors replace electrical tape?
Yes. The push-in spring design eliminates the need for electrical tape and provides a stronger, safer hold.
2. Are they suitable for stranded and solid wires?
Yes. They support 20–12 AWG solid and stranded cables.
3. Can they handle high-temperature environments?
Absolutely. The PVC shell is heat-resistant from -40°C up to 150°C.
4. Are these connectors reusable?
They are primarily designed for permanent secure connections, not repeated removal.
5. What tools do I need for installation?
None. Simply insert the wire into the spring terminal—no screws, no tape, no special tools required.
