Accurate Wheel Alignment Tool

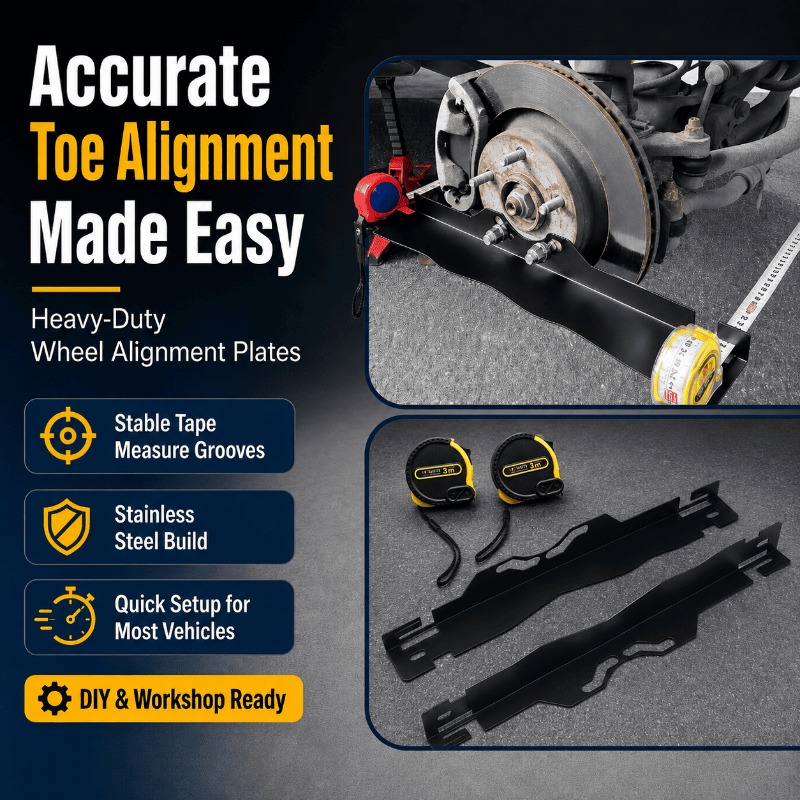

Accurate Wheel Alignment Made Simple

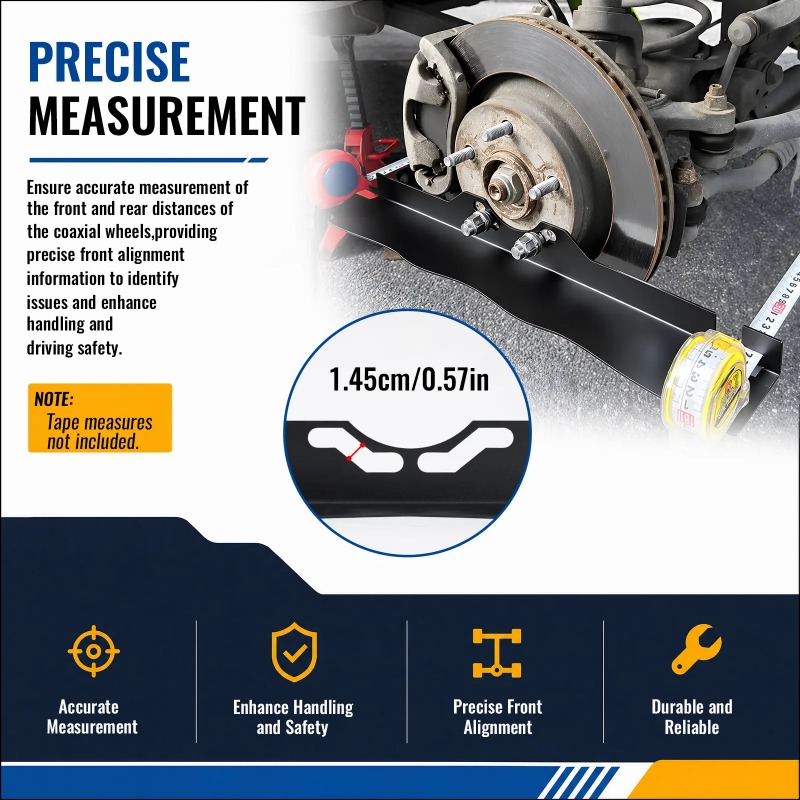

Achieve precise physical toe measurements without relying on fragile electronics. Securely mounts directly onto your brake rotors to provide reliable, repeatable alignment readings every single time.

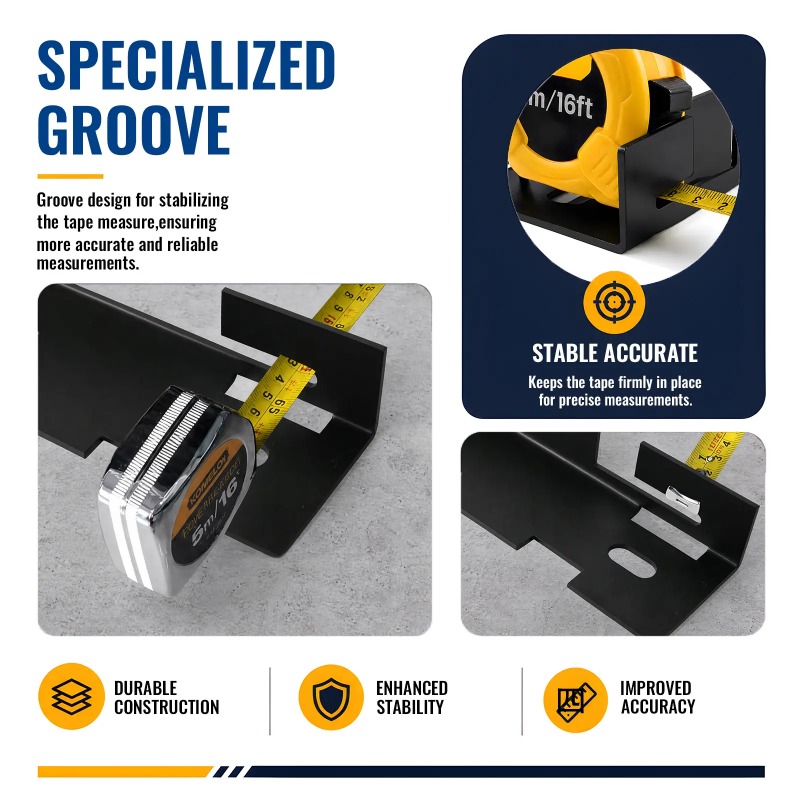

Specialized Tape Slot: Zero Slip, Pure Accuracy
Tired of tape measures slipping mid-measurement? Our precision-cut rectangular end slots lock standard tape measure hooks firmly in place. This allows a single operator to measure toe-in and toe-out across the vehicle chassis without needing an extra set of hands to hold the tape.
Heavy-Duty 201 Stainless Steel Construction
Engineered for harsh workshop environments, these alignment plates are constructed from solid 201 stainless steel. Finished with a rugged industrial matte coat, they resist rust, scratches, and oil splashes. The rigid 90-degree vertical bends prevent flexing to maintain flat plane accuracy during stress testing.

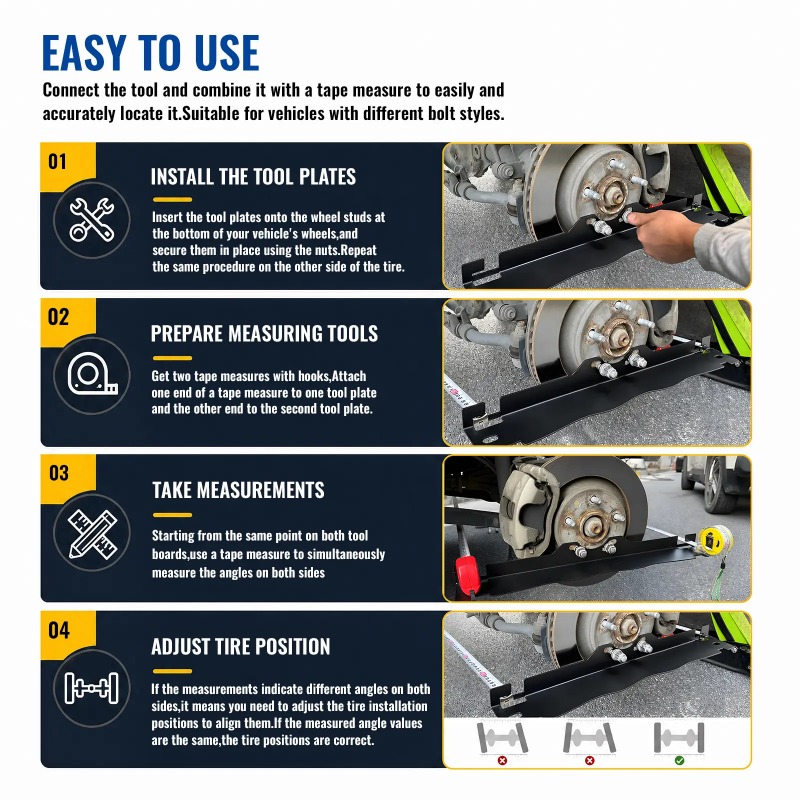

Easy-to-Follow Alignment Steps
Technical Specifications
| Material | Heavy-duty 201 Stainless Steel |
| Surface Treatment | Industrial Anti-Glare Matte Coating |
| Compatibility | Universal slotted holes fitting 4 & 5 lug patterns |
| Measuring Method | Dual Tape Measure Mechanical Tracking |
| Color Variants | Matte Black / Industrial Silver |
⚠️ Important Notice: Lock nuts are not included. Please use your vehicle's original lug nuts or standard matching thread open-ended nuts to secure the plates safely against the brake rotor face.
Technical Support & Usage FAQ
🔍 Will these plates fit my specific bolt pattern?
Yes. The central mounting slots are designed as horizontal elongated ovals. This universal engineering allows them to fit almost all standard 4-lug and 5-lug passenger vehicle hub setups easily.
📏 Does this package include the tape measures?

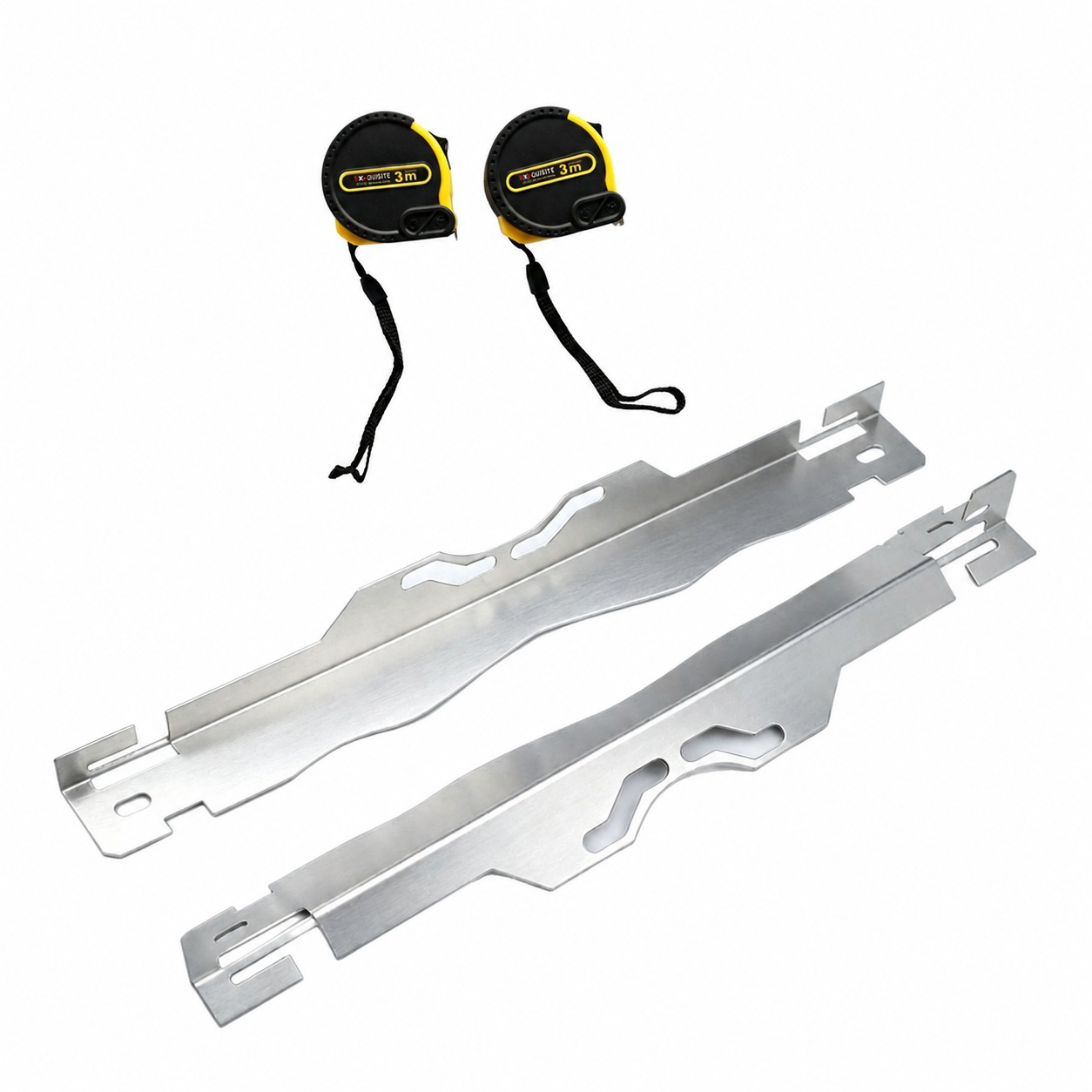

Please check your selected SKU variant during checkout. We offer a "Standard Plates Only" set (plates only) as well as an "Alignment Tool Kit" which includes 2 heavy-duty tape measures (3m/5m length options).
🔧 Does this measure camber or caster?
No. These plates are physically optimized solely for checking and adjusting Toe-in and Toe-out alignments. They are a pure mechanical tool designed to deliver high precision without calibration drift.
