Foldable Magnetic Hinge Jig

$999.00 USD

Pack Size: 1-Pack

1-Pack
🔥 2-Pack (Best Value • Save 10%)

Description

The Fastest Way to Perfect Cabinet Hinges

Stop measuring and guessing. This foldable hinge jig allows you to drill standard 35mm holes with precise alignment in seconds—ideal for DIYers and pros alike.

Fits Straight & Half-Crank Hinges

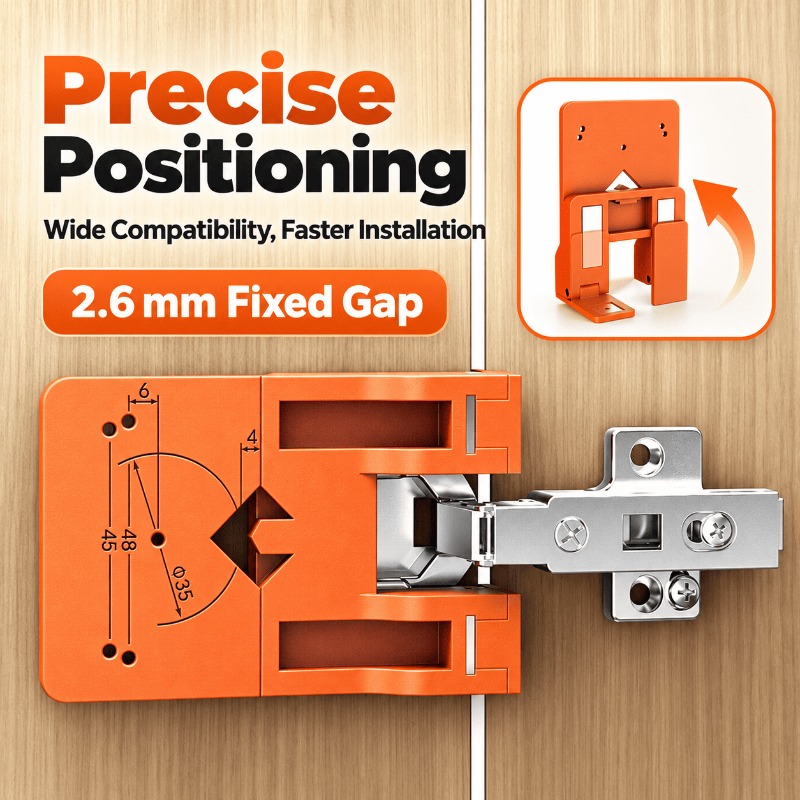

Precise Positioning, Zero Guesswork

Designed for the standard 35mm cabinet hinge size, this tool ensures your mounting holes are perfectly placed every time. The integrated guides help you mark the exact center and edge distance instantly.

  • One-Step Marking: Simply place, trace, and drill.
  • Fixed Gap Design: Maintains a consistent 2.6mm door gap automatically.
  • Wide Compatibility: Works on most wooden cabinet doors.

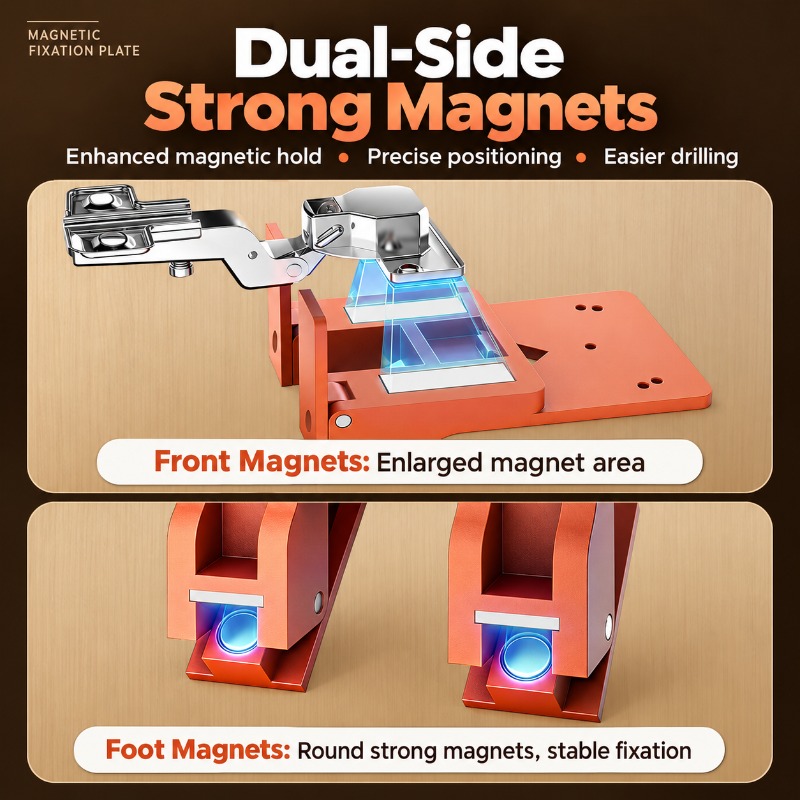

Dual-Side Strong Magnets

Fighting with a slipping hinge during installation is a thing of the past. Powerful embedded magnets hold both the jig and the hinge firmly in place while you work.

  • Front Magnets: Enlarged contact area grabs the metal hinge cup securely.
  • Foot Magnets: Round magnets stabilize the base against the wood surface.
  • Hands-Free Operation: Keeps everything steady so you can focus on drilling.

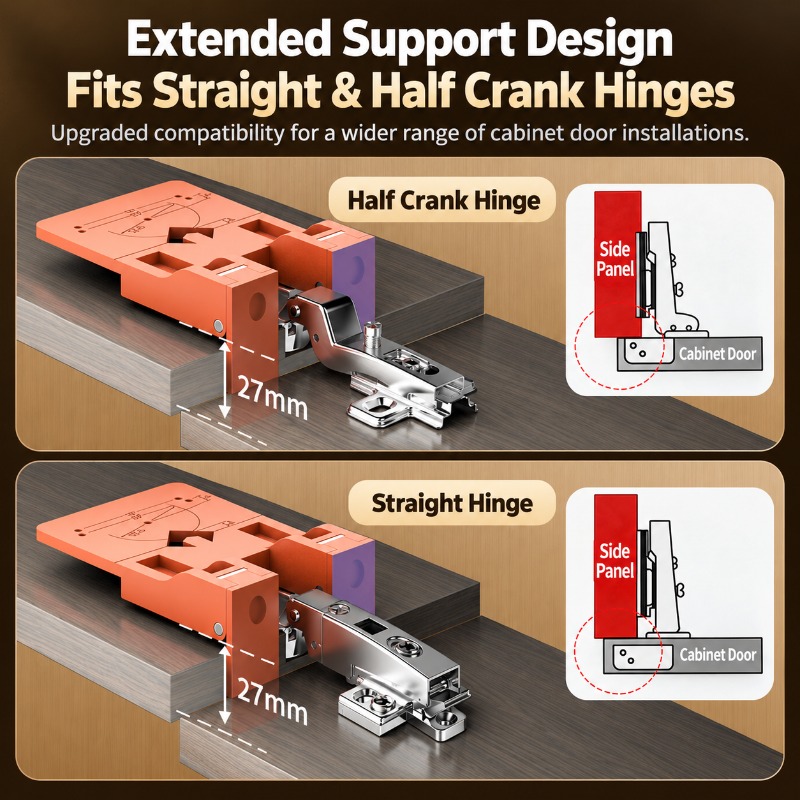

Extended Support for Multiple Hinge Types

Whether you are building inset cabinets or overlay doors, this upgraded design adapts to your needs. The extended support structure accommodates different hinge geometries without losing accuracy.

  • Straight Hinges: Ideal for full-overlay applications.
  • Half Crank Hinges: Perfect for half-overlay setups.
  • 27mm Offset: Specifically engineered to handle the depth requirements of cranked hinges.

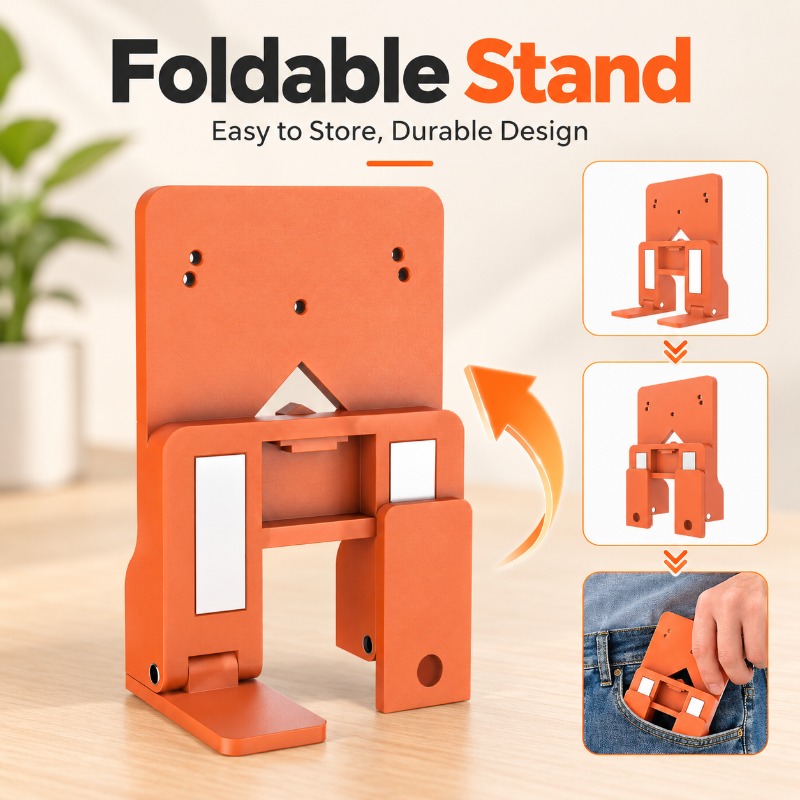

Foldable Stand, Pocket-Sized Convenience

Built for job sites and home workshops. The durable ABS construction folds down flat in seconds, making it easy to toss into a tool belt or pocket when not in use.

  • Compact Storage: Folds from a stand-up position to a flat card.
  • Durable Material: Made from high-quality ABS plastic that resists impact.
  • Lightweight: Weighs only 200g per pair.

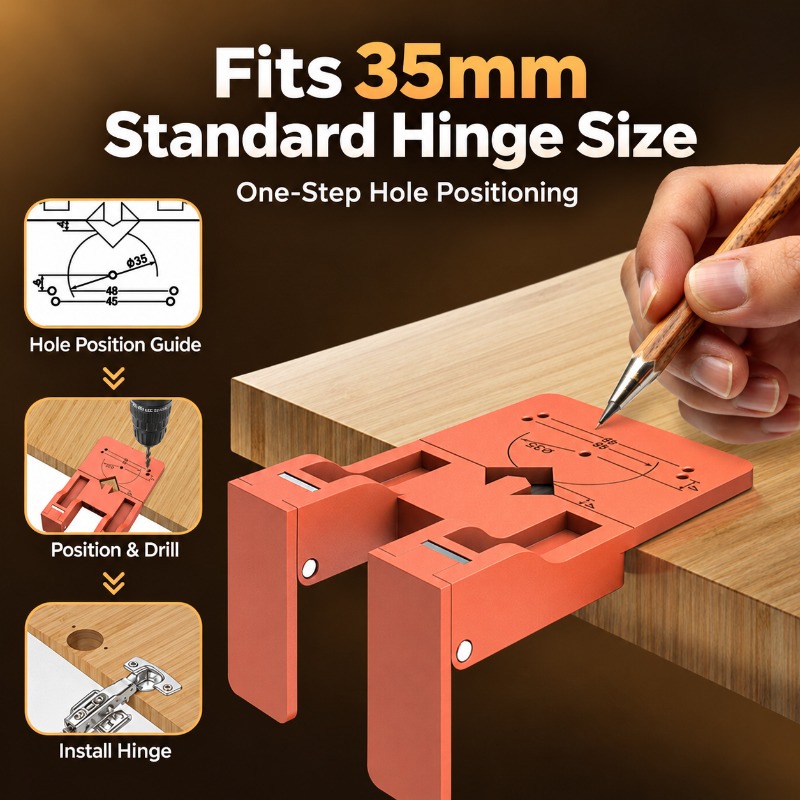

Simple Installation Process

Get professional results with just three simple steps. No complex calculations required.

  1. Align: Place the jig against the edge of the door panel.
  2. Mark: Use the guide holes to pencil in your drilling points.
  3. Drill: Create the hole using a standard Forstner bit.

Product Specifications

Review the dimensions to ensure this fits your workspace needs.

Material ABS Plastic + Magnets
Package Content 1 x Hinge Jigs (Set)
Weight ~200g per set
Open Height 3.92 in / 9.97 cm
Base Width 2.6 in / 6.6 cm
Hinge Fit Standard 35mm

Frequently Asked Questions

Does this fit all types of cabinet hinges?
It is designed for the industry-standard 35mm diameter hinge cups. It works specifically with Straight Arm (Full Overlay) and Half-Crank (Half Overlay) hinges.
How do I clean or maintain the magnets?
Simply wipe away sawdust after use. The magnets are embedded inside the ABS plastic, so they are protected from rust and damage during normal use.
What comes in the package?
This listing is for a 1-pack set of the folding hinge jigs. It does not include drills, screws, or hinges.
Is this suitable for beginners?
Yes! The magnetic hold and pre-set measurements make it very beginner-friendly. You don't need to calculate distances manually.
