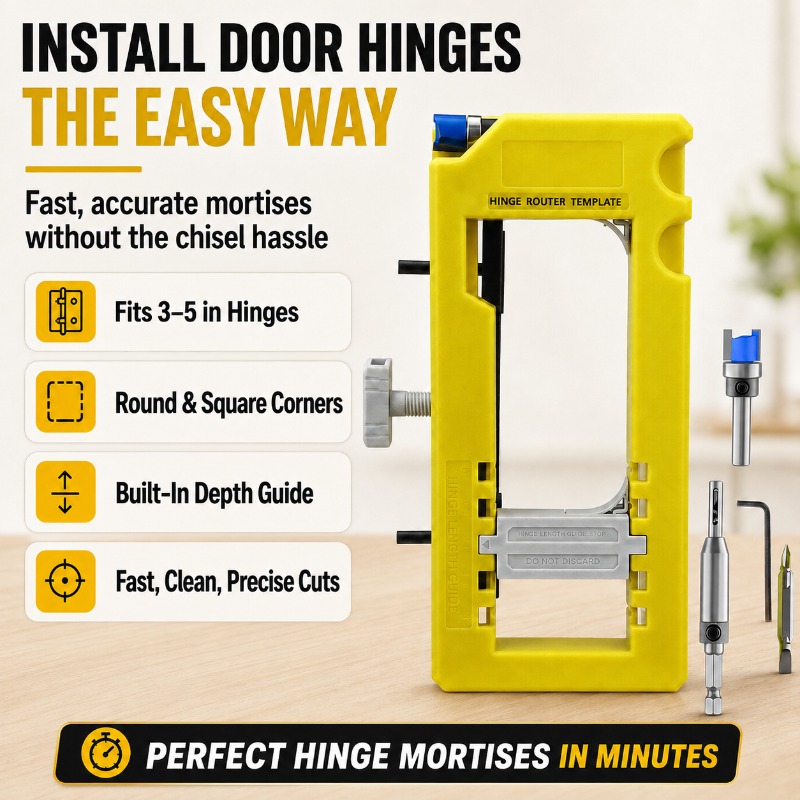

Precision Hinge Mortise Jig
Professional Door Hinge Mortises, No Chisel Required
Achieve perfect, flush hinge installs every time. This jig guides your router for fast, clean, and accurate mortising on wood doors.
Ditch the Chisel for Router Precision

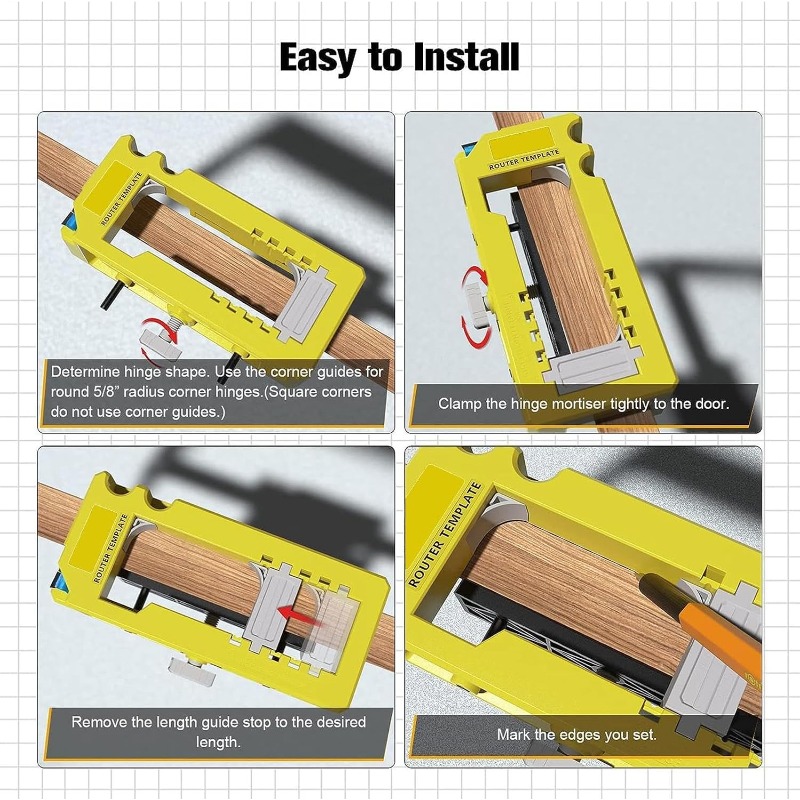

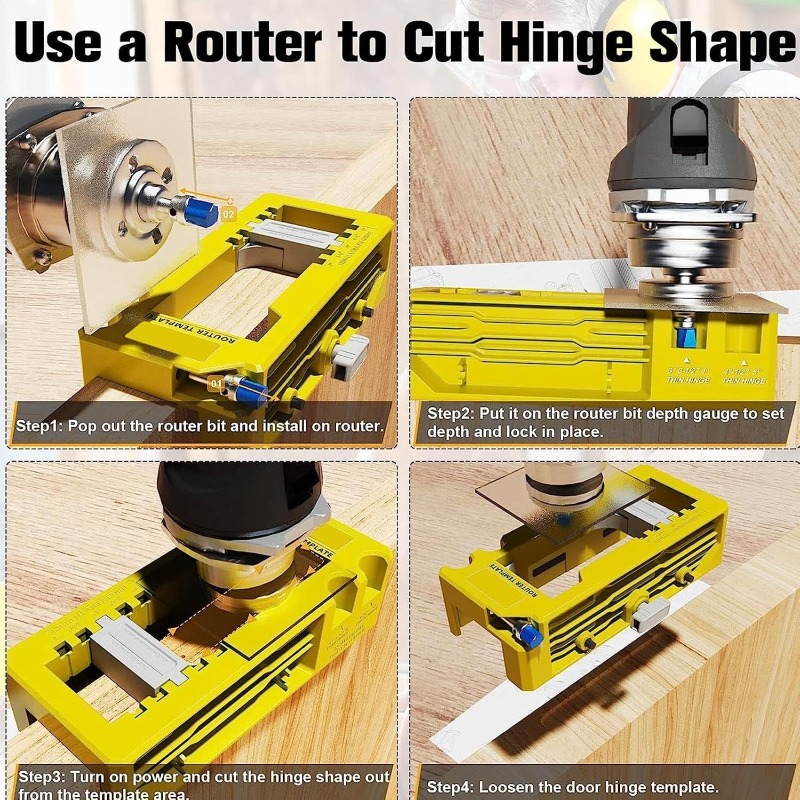

Forget the slow, error-prone hammer and chisel method. This template securely clamps to your door and guides your router to create perfectly shaped, flat-bottomed mortises in seconds. Get a professional, flush fit that looks like it was done in a factory.
Easy Setup Consistent Results
One Jig for Most Hinges
Designed for versatility, the jig easily adjusts to fit standard hinge lengths from 3 inches to 5 inches. Switch between the included corner inserts to match square corners or rounded (5/8" radius) hinges with a simple snap.
3"-5" Lengths Square or Round Corners
Everything You Need to Install

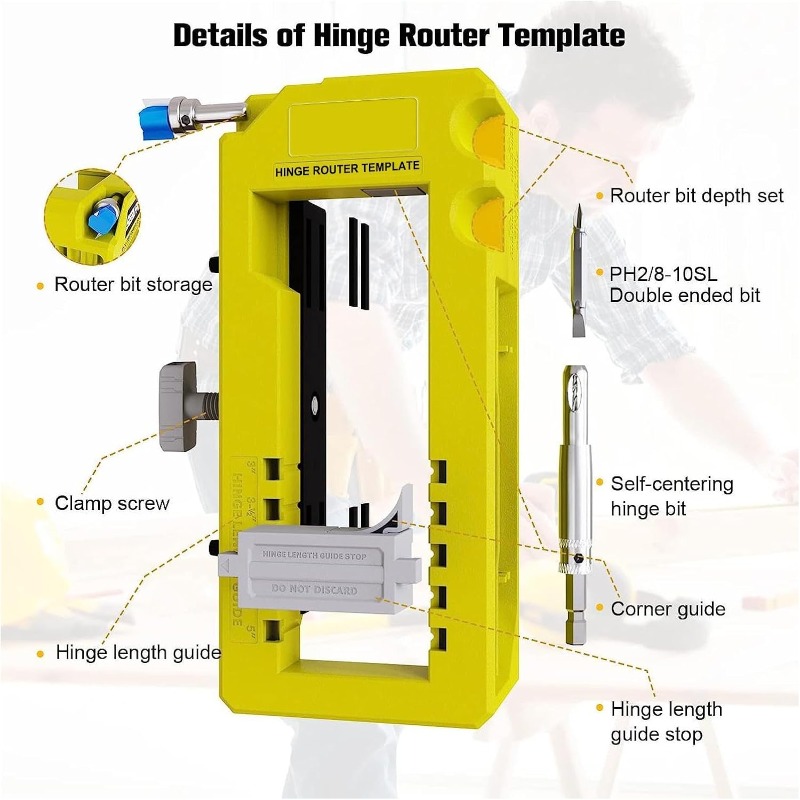

This isn't just a jig; it's a complete installation solution. The kit includes a specialized router bit with a bearing, a self-centering hinge bit for perfectly aligned screw holes, and a double-ended driver bit. Just add your router and drill.
Router Bit Included Self-Centering BitSpecifications
| Material | Engineering Plastic Frame, Metal Components |
|---|---|
| Jig Dimensions | Approx. 20cm x 8.5cm (7.9" x 3.3") |
| Hinge Compatibility | Length: 3" to 5" Corners: Square or 5/8" Radius Round |
| Application | Wood doors only |
| Package Includes | 1x Hinge Mortise Jig, 1x Router Bit, 1x Self-Centering Hinge Bit, 1x Double-Ended Driver Bit, 1x Hex Spanner |
