Stainless Steel Tile Locator
Stop Wasting Expensive Tiles on Bad Measurements
We’ve all been there: you measure twice, cut once, and the hole is still 2mm (1/16") off. Not only is it frustrating, but throwing away expensive ceramic or marble tiles eats directly into your project budget.
It’s time to take the guesswork out of tile installation.
Flawless Precision, No Math Required

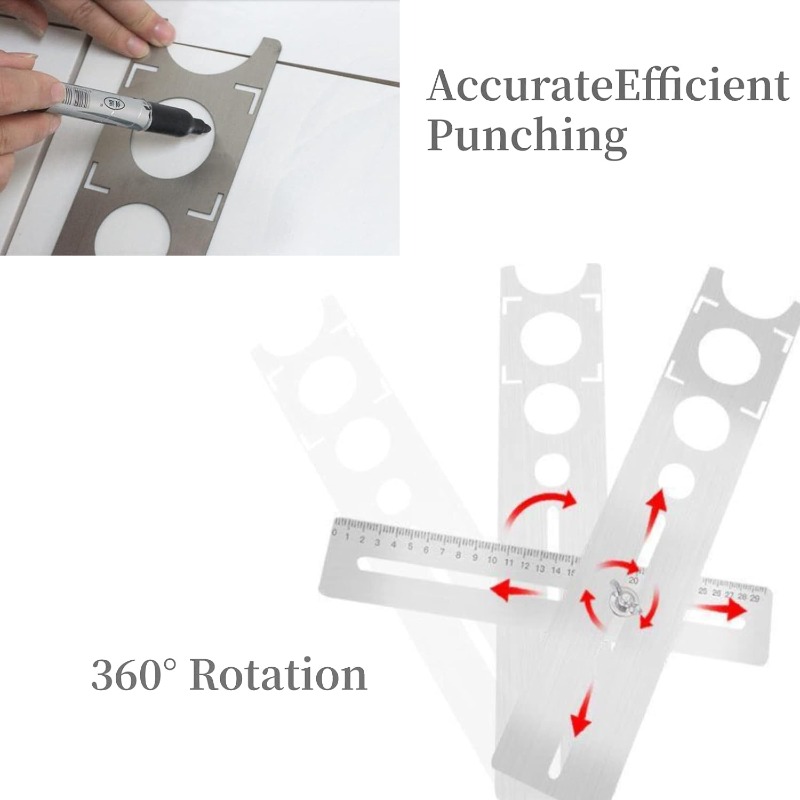

The Stainless Steel Tile Locator is your ultimate template tool. Whether you work in inches or centimeters, it doesn't matter! Instead of struggling with complicated math or measuring tapes, simply adjust the physical arms to match your plumbing outlets, lock it in place, and trace. You get a perfect, gap-free fit around pipes, shower heads, and wall corners on the very first try.
Why Professionals & DIYers Love It:
- Zero Wasted Materials: Get the cut right the first time and save money on ruined tiles.
- Work 3x Faster: Skip the tedious measuring. Just align, lock, trace, and cut.

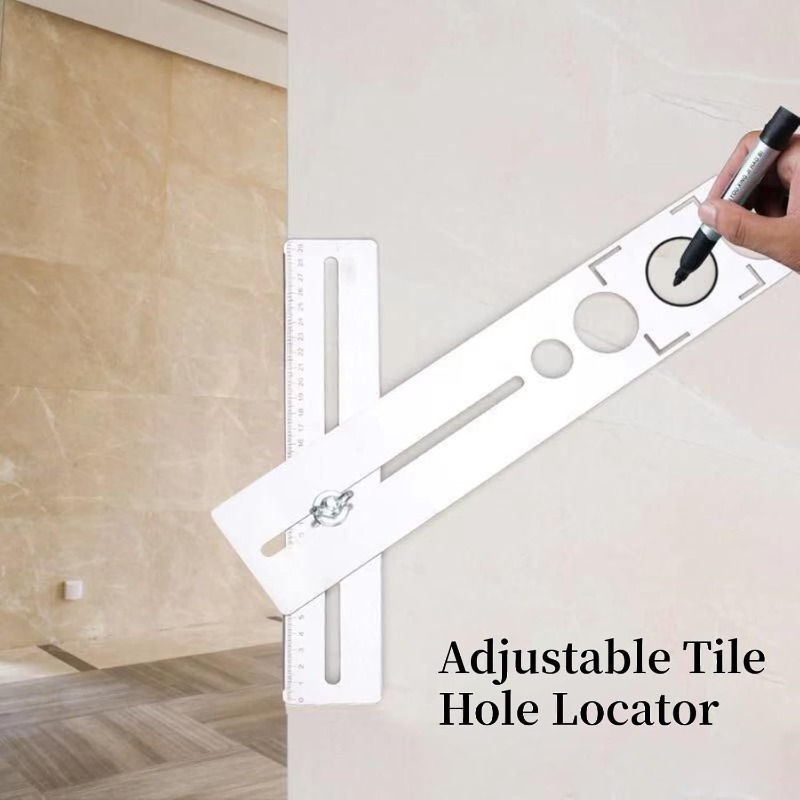

- Universal Application: Features three standard circular templates—25mm (1"), 40mm (1.5"), and 45mm (1.75")—plus a semi-circle guide, perfect for standard US and UK water pipes and electrical conduits.
Built for the Toughest Job Sites

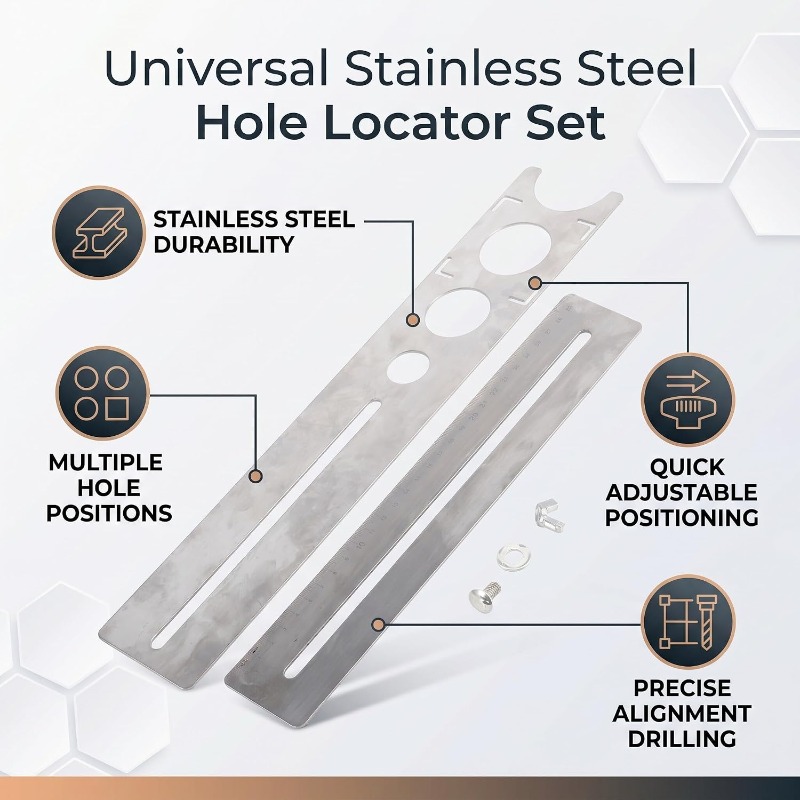

Unlike cheap plastic alternatives that snap or bend, our 40cm (15.8") locator is forged from high-hardness, rust-proof stainless steel. The permanent, laser-etched markings will never rub off, even when covered in wet mortar or tile dust.

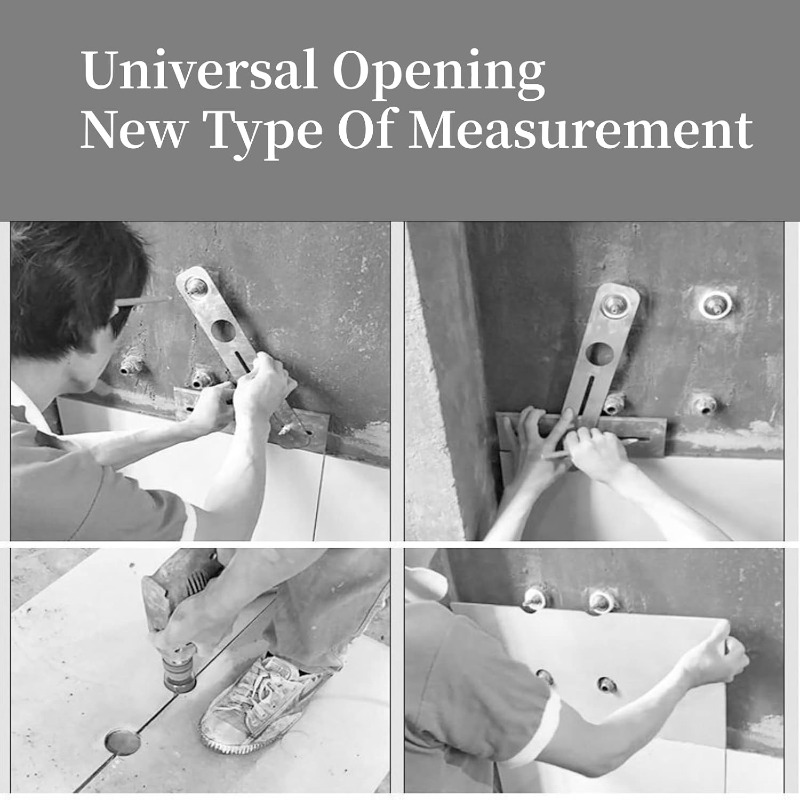

How It Works
Fit & Align
Position the flat ruler arms against your plumbing outlets or wall obstructions.
Lock Tight
Tighten the butterfly wing nut to secure the exact angle and measurement template shape.
Trace Patterns
Place the secured template onto your tile, using a marker inside the guide circles to sketch cutting lines.
Cut & Fit
Drill your hole based on the trace lines, then install your perfectly matched tile with no gaps.

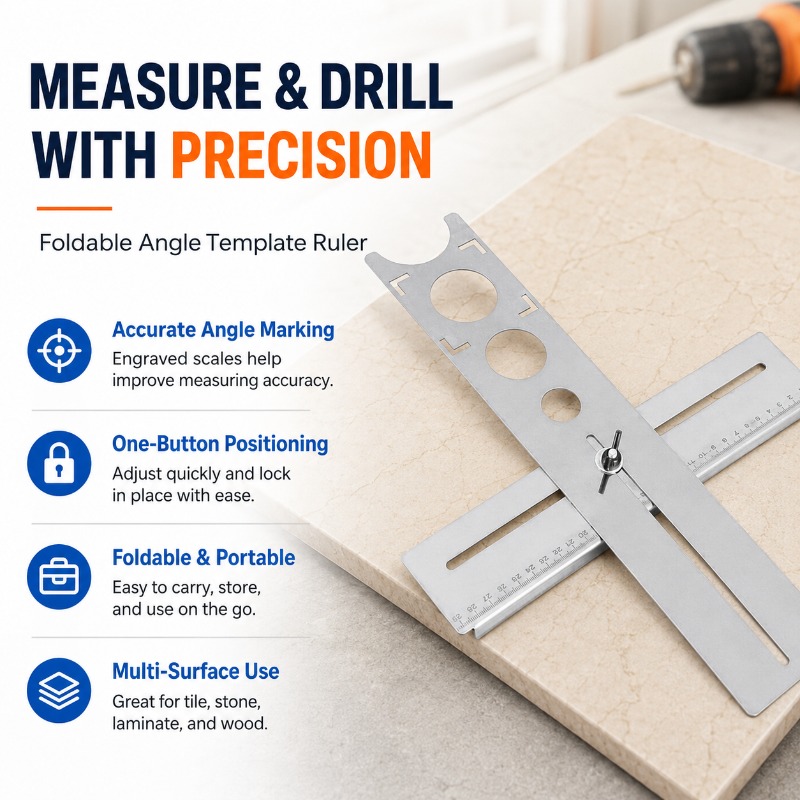

Specifications
| High-hardness, rust-proof stainless steel |
| Heavy-duty butterfly wing nut, steel washer, and slide bolt configuration |
| 40.0 cm (15.8 in) Length x 8.0 cm (3.1 in) Width |
| 30.0 cm (11.8 in) Length x 6.5 cm (2.5 in) Width |
| Includes 25mm (1"), 40mm (1.5"), and 45mm (1.75") circular guides & one edge-forming semi-circle template |
| Laser-engraved metric scale (Works universally for both Metric and Imperial projects via physical shape-locking) |
Frequently Asked Questions
Can this tool measure multiple holes at the same time?
Yes. The double-ruler locking track design allows you to adjust the templates to align, lock, and mark multiple holes or adjacent outlets concurrently.
Will the scale numbers wash off during wet tile cutting?
No. The measurement lines and numbers are deeply laser-etched into the metal, preventing them from washing away, rubbing off, or fading over time.
What materials can this locator template tool be used on?
It is designed for use on ceramic tile, stone, wood paneling, laminates, and composite surfaces that require precise, repeatable hole cuts.
